Save The Earth Ride With Gaura Electric Bike

Overview	Warrior 5G Li+
FEATURES
Top Speed (Kmph)	25
True Range	60 KM
MOTOR
Motor Power (Peak/Rated)	< 250W
Motor Grade	IP54
Type	BLDC
Payload	150kg
BATTERY
Battery Technology	Lithium Ferro Phosphate (LFP)
BMS Type	The most advanced SMART BMS with CAN communication includes a temperature sensor and cell balancing.
Battery Grade	IP54
Battery Cell Type	Prismatic
Battery Capacity	51.2V 30AH
Life Cycle	Upto 1500 Cycles
CHARGER
Charger	Microcontroller Based
Charging Current (Amps)	6
Charging Time 0-80% (Hrs)	4
Charging Time (Hrs)	4-5
BRAKES
Type	Disc
Front Brake	180 mm Hydraulic Disc Brake
Rear Brake	180 mm Hydraulic Disc Brake
LIGHTS
Headlight	LED Bulb
Indicator Light	Halogen bulb
Brake Light/Tail Light	Halogen bulb
INSTRUMENT CLUSTER
Type	3.5 Inch LCD
Communication	RS 485
State Of Charge (SOC)	YES
Distance To Empty (DTE)	YES
Time to Charge TTC)	No
Functions	1. Distance to empty, 2. Percentage of charge & Failure Alert message
SCOOTER DIMENSIONS
LxWxH (MM)	1840 x 700 x1100
Ground Clearance (MM)	175
LOAD CAPACITY
Seating Capacity	2
Kerb Weight (In Kgs)	75
WARRANTY
Battery	3 Year
Charger	1 Year
Motor	3 Year
Controller	3 Year
SUSPENSION
Front	Telescopic
Rear	Coil spring
TYRE
Type	Tubeless
Front & Rear tyre	3.00X10

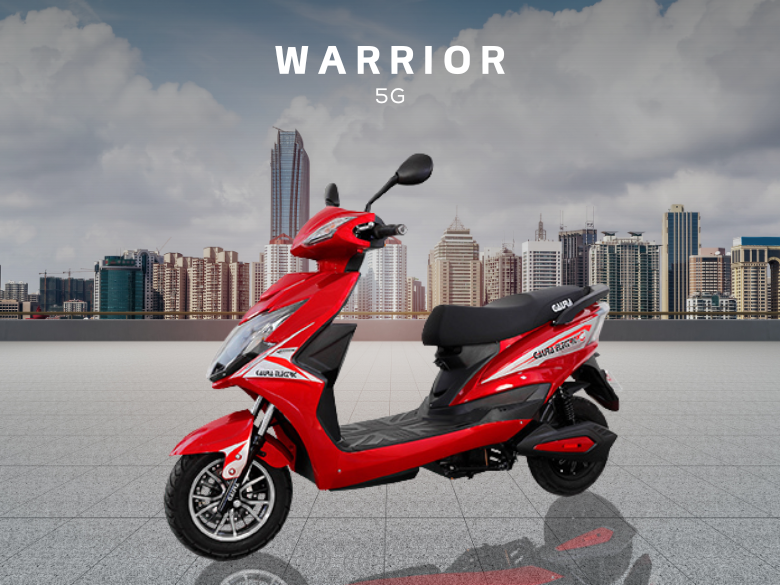

Gaura Electric Warrior 5G Overview
