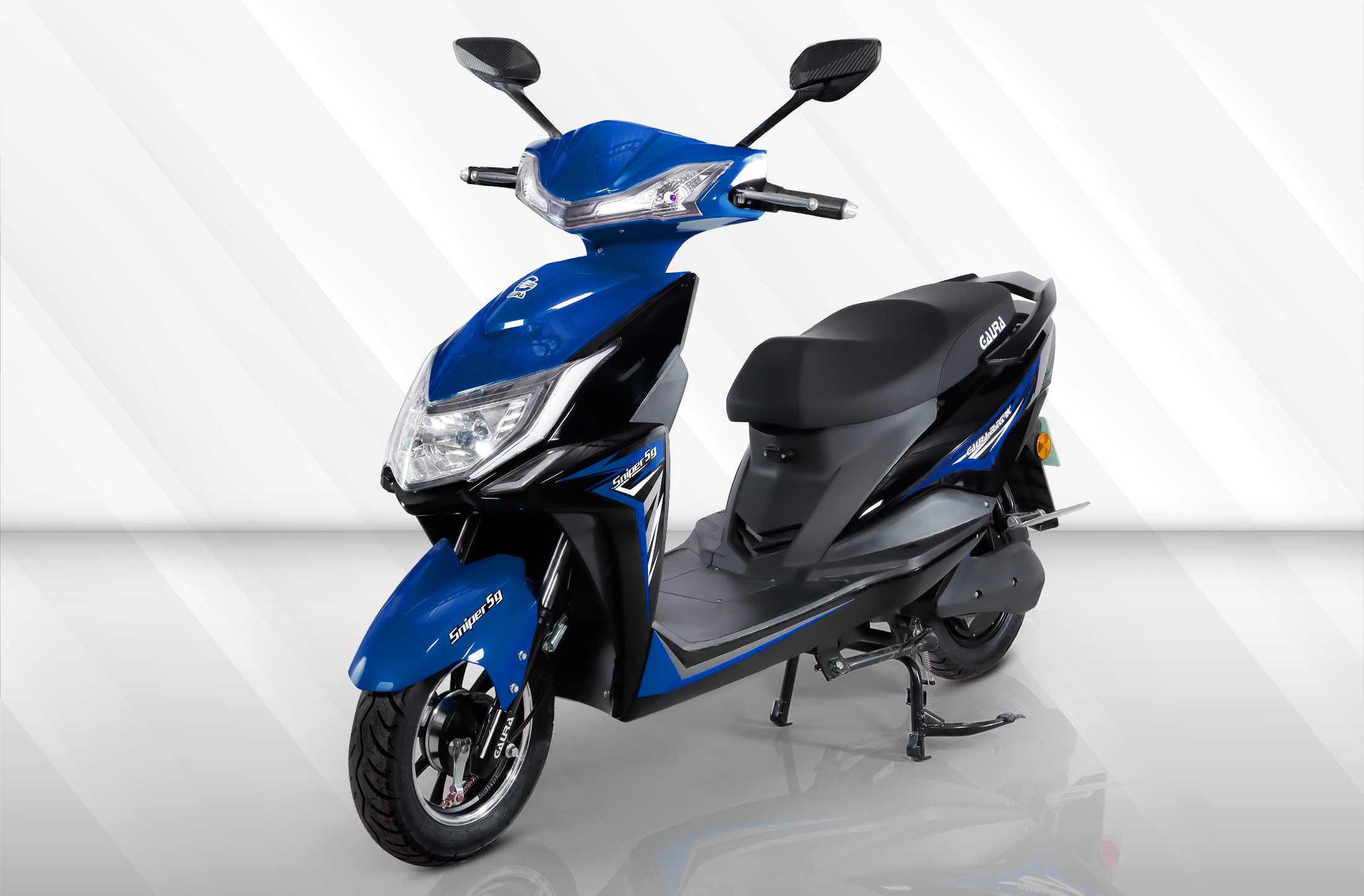

Gaura Electric Sniper 5G Overview



Overview Sniper 5G
FEATURES
Top Speed (Kmph)
25
True Range
50 KM
MOTOR
Motor Power (Peak/Rated)
< 250W
Motor Grade
IP54
Type
BLDC
Payload
130kg
BATTERY
Battery Technology
Lead Acid
Battery Cell Type
Sealed lead acid
Battery Capacity
60V 28AH
Life Cycle
Upto 500 Cycles
CHARGER
Charger
Microcontroller Based
Charging Current (Amps)
2.8
Charging Time (Hrs)
7-9
BRAKES
Type
Drum
Front Brake
110 mm Drum brake
Rear Brake
110 mm Drum brake
LIGHTS
Headlight
LED Bulb
Indicator Light
Halogen bulb
Brake Light/Tail Light
Halogen bulb
INSTRUMENT CLUSTER
Type
3.5 Inch LCD
Communication
RS 485
State Of Charge (SOC)
YES
Distance To Empty (DTE)
No
Time to Charge TTC)
No
Functions
Failure Alert message
SCOOTER DIMENSIONS
LxWxH (MM)
1800 x 690 x1090
Ground Clearance (MM)
165
LOAD CAPACITY
Seating Capacity
2
Kerb Weight (In Kgs)
93
WARRANTY
Battery
1 Year
Charger
1 Year
Motor
3 Year
Controller
3 Year
SUSPENSION
Front
Telescopic
Rear
Coil spring
TYRE
Type
Tubeless
Front & Rear tyre
3.00X10

Sniper 5G

Sniper 5G

feature

Top Speed 25 KMH

feature

Full CHARGE 7 To 9 Hours

feature

KERB WEIGHT 93KGS

Sniper 5G Li Lite

Sniper 5G Li Lite

feature

Top Speed 25 KMH

feature

Full CHARGE 4 To 5 Hours

feature

KERB WEIGHT 75 KGS

Sniper 5G Li Nano

Sniper 5G Li Nano

feature

Top Speed 25 KMH

feature

Full CHARGE 4 To 5 Hours

feature

KERB WEIGHT 75 KGS




BLDC MOTOR
____


brushless direct current motor BLDC motor technology offers longer lifetime due to the absence of brushes and commutator erosion.
They are highly efficient, providing better power conversion compared to traditional brushed motors, leading to longer range per charge.

feature
Aerodynamic
Design
feature
CAN Enabled
Smart Battery
feature
Safest LFP Battery -
AIS 156 Phase-II Certified
feature
Environmental
Protection


*T&C: The declared mileage of scooters is calculated based on a 50 KG person on flat roads (0-degree inclination), but it will vary depending on the weight of the rider, wind velocity, ridding pattern and road conditions. *


* Disclaimer: To get more information, please refer to the manual book for all Terms and Conditions. *
