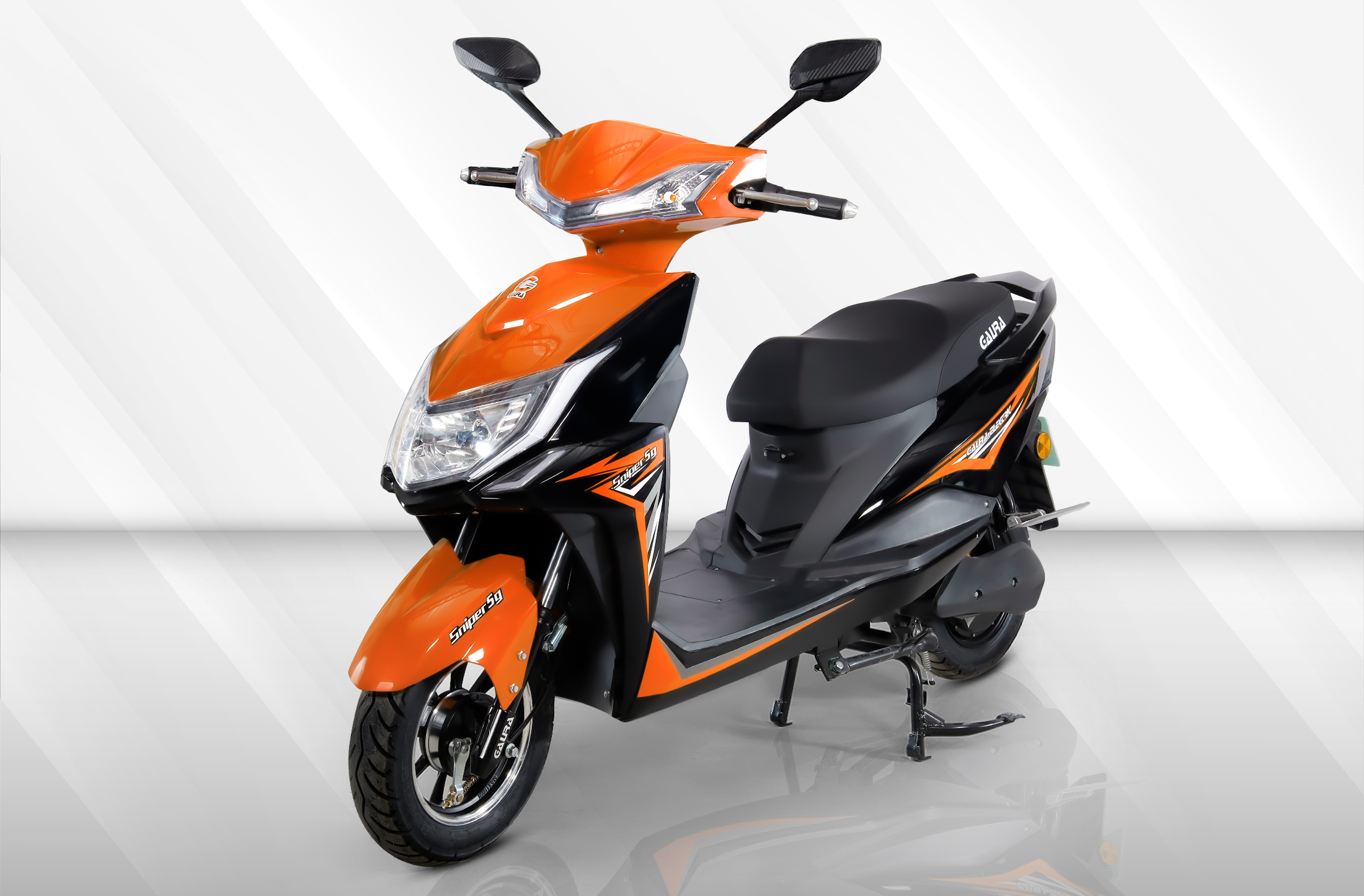

Gaura Electric Sniper 5G Overview



Overview Sniper 5G Li Nano
FEATURES
Top Speed (Kmph)
25
True Range
40 KM
MOTOR
Motor Power (Peak/Rated)
< 250W
Motor Grade
IP54
Type
BLDC
Payload
150kg
BATTERY
Battery Technology
Lithium Ferro Phosphate (LFP)
BMS Type
The most advanced SMART BMS with CAN communication
includes a temperature sensor and cell balancing.
Battery Grade
IP54
Battery Cell Type
Prismatic
Battery Capacity
64V 21AH
Usable Battery Capacity
64V 19AH
Kerb Weight With battery
71KG (APPROX.)
Claiming Capacity
7*
Life Cycle
Upto 1500 Cycles
CHARGER
Charger
64V 4AMPS
Charging Current (Amps)
6
Charging Time 0-80% (Hrs)
4
Charging Time (Hrs)
4-5
BRAKES
Type
Drum
Front Brake
Drum brake
Rear Brake
Drum brake
LIGHTS
Headlight
LED Bulb
Indicator Light
Halogen bulb
Brake Light/Tail Light
Halogen bulb
INSTRUMENT CLUSTER
Type
3.5 Inch LCD
Communication
RS 485
State Of Charge (SOC)
YES
Distance To Empty (DTE)
YES
Time to Charge TTC)
No
Functions
1. Distance to empty, 2. Percentage of
charge & Failure Alert message
SCOOTER DIMENSIONS
LxWxH (MM)
1800 x 690 x1090
Ground Clearance (MM)
165
LOAD CAPACITY
Seating Capacity
2
Kerb Weight (In Kgs)
73
WARRANTY
Battery
2 Year
Charger
1 Year
Motor
3 Year
Controller
3 Year
SUSPENSION
Front
Telescopic
Rear
Coil spring
TYRE
Type
3.00 X 10-Tubeless
Front & Rear tyre
3.00X10


=
